Family base entry: Geometric Marks, which opens with the Delaunay Links preset.
Example mark structure:
{
"data": [
{ "x": 1, "y": 2, "weight": 10 },
{ "x": 2, "y": 4, "weight": 15 },
{ "x": 4, "y": 3, "weight": 8 }
],
"color": { "legend": true },
"marks": [
{
"type": "delaunayLink",
"options": { "x": "x", "y": "y", "stroke": "weight" }
}
]
}

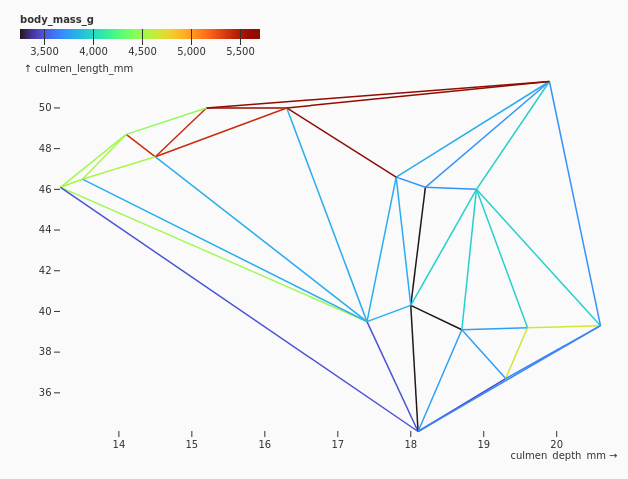

Delaunay Links
DelaunayLinks
Connects neighboring points by constructing a Delaunay triangulation, making it useful for showing proximity relationships, spatial neighborhoods, and point-to-point structure without manually defining every edge.

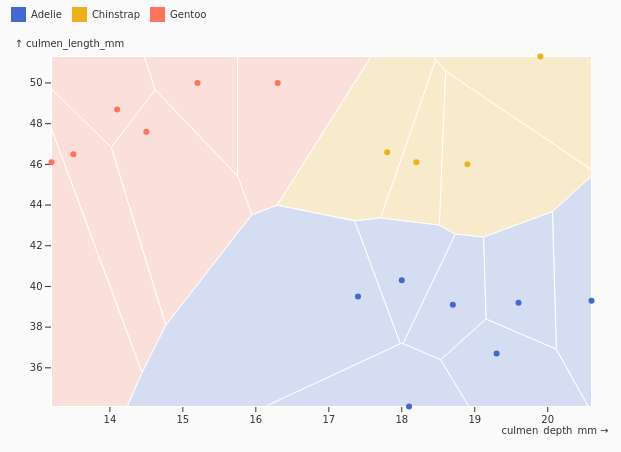

Voronoi Scatterplot
VoronoiScatterplot
Partitions the plotting area into Voronoi cells around each scatter point, helping readers see the nearest-point region for every observation and understand spatial influence or coverage across the chart.

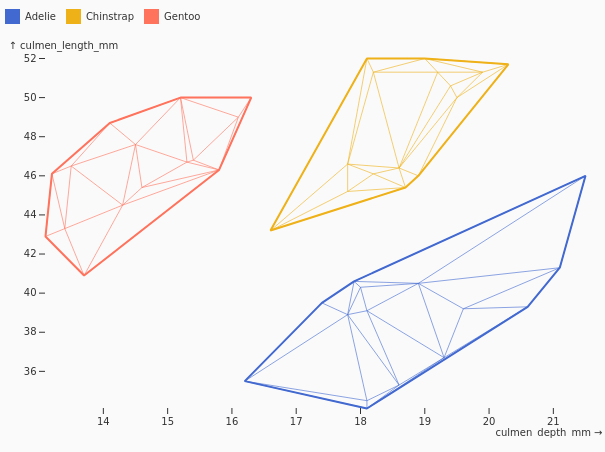

Delaunay & Hull
DelaunayHull
Combines Delaunay triangulation with the convex hull boundary, showing both the internal neighborhood connections between points and the smallest enclosing outline that contains the full point set.
